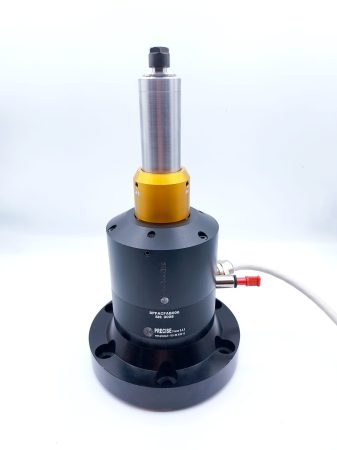

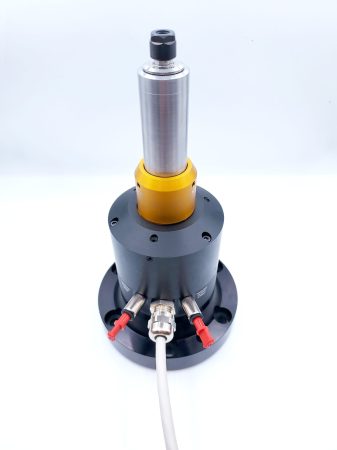

Very sensitive device that can be connected to a robot interface or a machining center to make a tool compliant:
– The PRECICHAMFER integrates an 80000 rpm electro-spindle, the compliance adjustment is done pneumatically in order to apply a constant effort on the part to be retouched,
– The PRECICHAMFER compensates for the trajectory defects of the robot and thus allows a high precision finishing by remaining always normal to the part (no ball joint).
Example of application: deburring of steel parts / breaking of angles.
TECHNICAL CHARACTERISTICS
Compliant head :
- Travel on X-Y plane = +3mm
- Working position = all
- Mass of the set without interface = 2kg

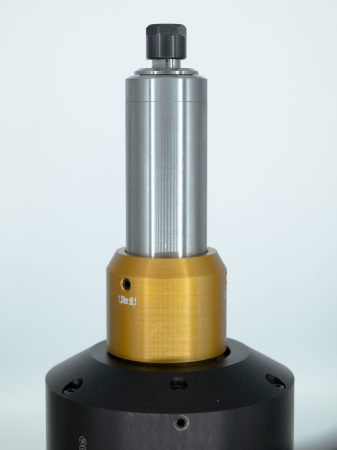

Broche SycoTec 4015 DC :
- Type de moteur = Brushless Direct Current
- Speed = 5,000 - 80,000 min-1
- Maximum power = 250 W (Pab)
PRECISE France manufactures your custom-made electrospindle.
The company carries out all specific studies adapted to your needs and brings you innovative solutions. Un service global de la conception à la réalisation et une qualité maitrisée :
• Reactivity
• Competitiveness
•Quality guaranteed by 40 years of experience
• Guarantee the maximum performance of your tools
• Patent registration
