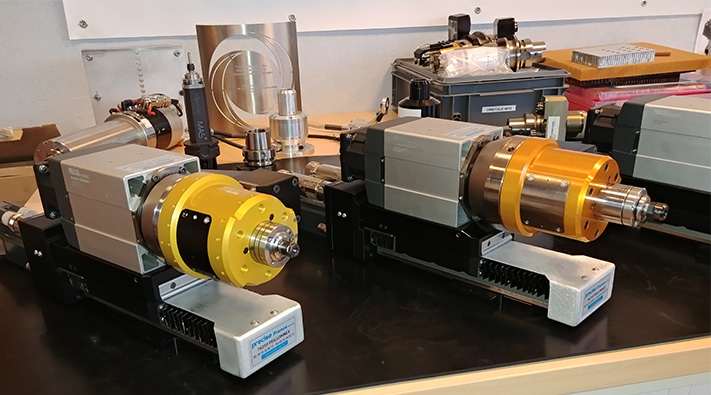

We have upgraded the first version presented with a hydropneumatic cylinder (Rodeo project) to a version with an electric feed axis. Available in 4015 and 4036 versions, as for the orbital heads from which it is derived (more about Orbital drilling heads)
ORBIBOT Power version : Orbital light COBOT + ADU + ROBOT
Project Clean Sky RODEO
Orbital speed up to 2000 rpm
For 4015 version:
Spindle speed up to 80000rpm

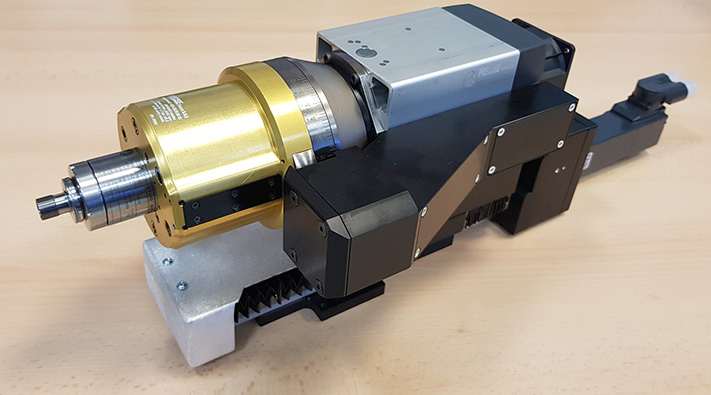

For the 4036 version:
Spindle speed that can go up to 50000rpm max. (even 60000rpm for a short period)
- Manual eccentricity adjustment
- Manual tool change
- Aluminum
- Titanium + carbon
- Hole diameter from 5 to 12 mm
- Maximum stroke of the motorized linear drilling axis on the versions with electric axis: 65 mm (with the possibility of making it longer if necessary)
PRECISE France manufactures your custom-made electrospindle.
The company carries out all specific studies adapted to your needs and brings you innovative solutions. Un service global de la conception à la réalisation et une qualité maitrisée :
• Reactivity
• Competitiveness
•Quality guaranteed by 40 years of experience
• Guarantee the maximum performance of your tools
• Patent registration
